    22 Inch Cutter Suction Dredger for Customized Request Customization 15m Dredging Depth

    Ask Lasest Price
    Supply Ability : 2500set /Year
    Certification : ISO 9000, ISO 14001,ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025
    Price : Negotiable
    Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
    Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash
    • Product Details
    • Company Profile

    22 Inch Cutter Suction Dredger for Customized Request Customization 15m Dredging Depth

    Good quality diesel engine power 22 inch cutter suction dredger
    22 inch cutter suction dredger introduce :
    22 inch cutter suction is a normal dredger of diesel engine power hydraulic system and PLC control . Normal configuration : Cumins diesel engine . Rexroth hydraulic system . Shijiazhuang sand pump . Siemens PLC . Optional : anchor boom . underwater pump . spud carrige .depth meter . water flow meter . so on . water flow is 4000-5000 cubic meter . accroding to 20%-30% concentration to count maximun capacity is 1000-1500 cubic meter .dredging depth is 16 meter . maximun discharge distance 2000 meter .if over 2000 meter we need to add the booster station . it is widely used in all kinds of dredging project and land reclamation and port construction so on .
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger

    cutter suction dredger picture:
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger

    cutter suction dredger main device :
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger
    Cumins diesle engine Shijiazhuang dredging pump Hydraulic pump
    Basic parameter :
    Total length38m
    Main engine brand /PowerCumins /1193kw
    Auxiliary engine brand /PowerCumins /298kw
    Harbour generatorCumins 40kw
    Dredging pumpWarma technology /550 (Shijiazhuang brand )
    Discharge pipe Inner diameter550mm
    Maximum dredging depth20m
    Maximum discharge distance2000m
    Clear water flow4000-5000m3/h
    Maximun capacity (Concentration 20%-30%)800-1500 m3/h
    Cutter head diameter1700mm
    Cutter head power260kw
    Hydraulic system brandRexroth brand
    PLC systemSiemens
    Total fuel consumption229L/H

    Cutter suction dredger is customized product . so we can according to your request to do the any deisgn dredger and install different brand device
    Advanced 22 inch cutter suction dredger feature :
    Modular design:The pontoons and main spare parts are connected by the bolts and nuts. which means the dredger can be dismantled in the factory and mounted in the construction sites. Of course. the delivery time will be reduced a lot by containers.
    World -class spare parts:We use the best parts like Cumins disel engine and Simmens PLC controlling system.......Also. we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers.
    Flexible in use:The dredgers can be adapted to different circumstance like river and lake. The material like sand. stones. mud. salt can be easily sucked and discharged to the destination place.

    Range of application :
    1rivers. lakes. sea. reservoirs. port construction . land reclamation and dredging inland water way so on
    2rivers. lakes. reservoirs. pumping port dredging silt.
    3pumping sand beneficiation: Select iron sand pumping.pumping sand gold. rare earths. such as pumping sand election.
    4sewage treatment plant settling ponds cleanup.
    5municipal pipelines. storm water pumping station. hydroelectric sediment cleanup.
    6
    construction (sinking bridge construction. etc.) discharge of sediment. mud

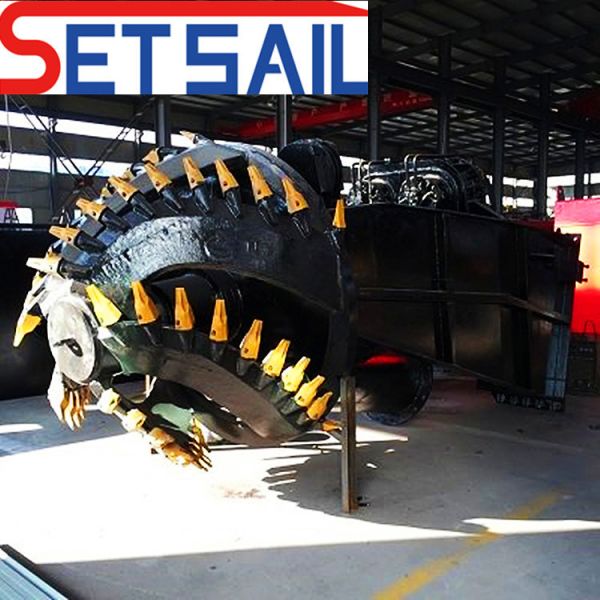

    Mainly spare parts introduce :
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger

    Set Sail cutter suction dredger in abroad :
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger
    Manufacture machine in factory :
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger
    After-sales service :

    1Free dredger consulting. design and product drawings
    2Site visit and factory visit are provided .send the engineer to the working site then do the accurate design
    3Arrange 2-3 senior engineers and technicians to enter the work site within 36 hours
    4Free professional assembly. training and operation to ensure a smooth operation of the dredger
    52 year warranty. lifetime technical support
    6Sign after-sales service agreement with customer
    7Spare parts are supplied at a discounted price
    8Responsible sales team. design team. manufacturing team to provide customers with the best service 24/7.


    Company introduct :
    Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.
    Factory has manufacture experience more than 20 years.
    More than 50 certificated engineers and technicians.
    We have certification and patent more than 50 item. It contains ISO CE etc.
    Set Sail dredger is sold more than 80 countries .
    Good Quality Diesel Engine Power 22 Inch Cutter Suction Dredger
